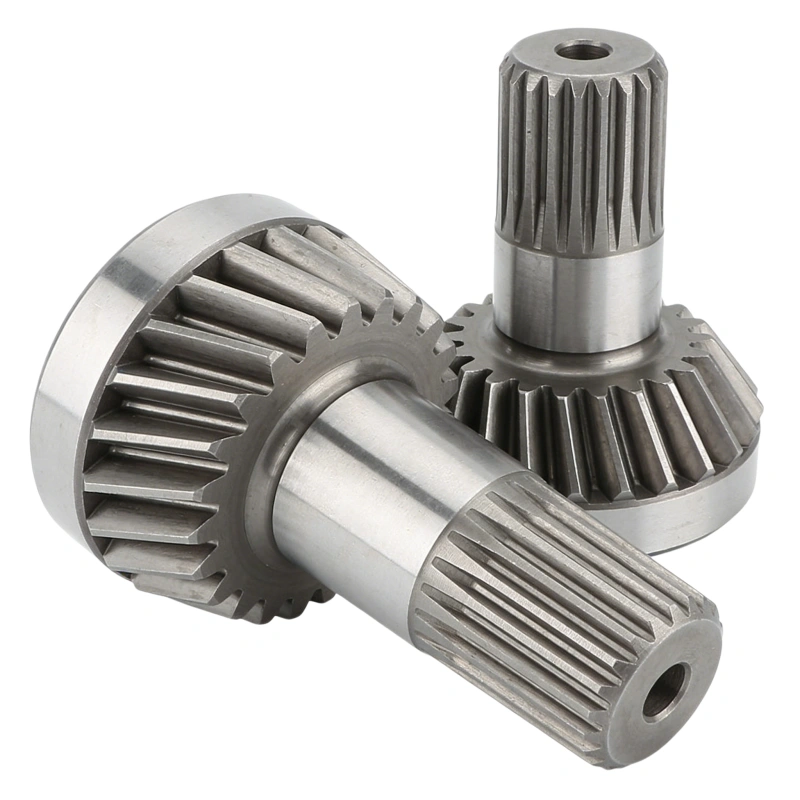

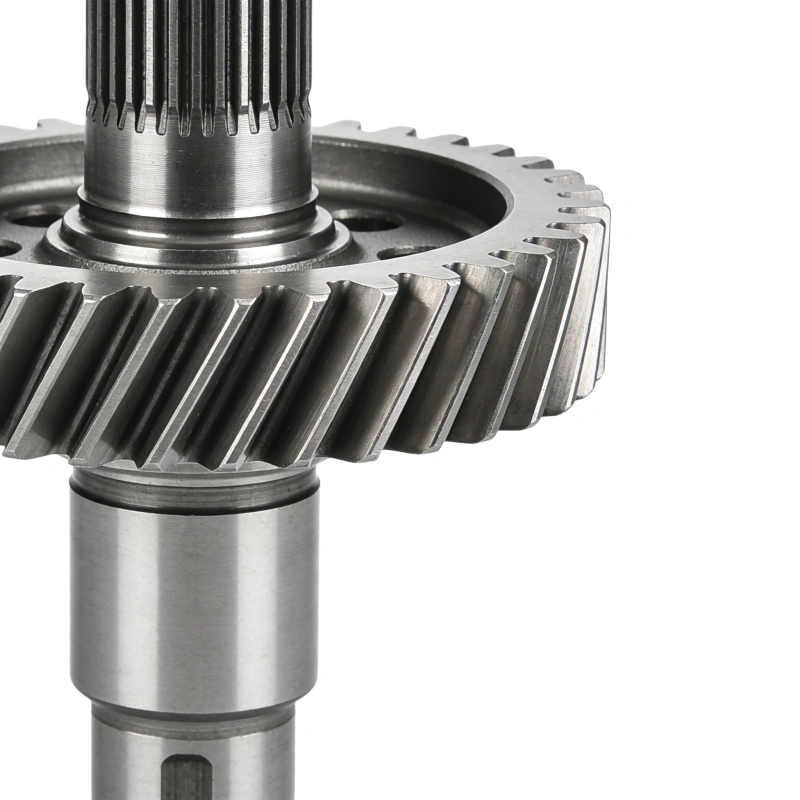

Custom processing: 316L stainless steel forged direct gear shaft, wear-resistant and impact-resistant gear shaft for automotive drive axle

• Company Profile: Jiangsu Chengyi Cast Metal Products Co., Ltd. Main Business: Multi-process forged components, such as die-casting/molds/precision forging (including 304/316 stainless steel, alloy steel, carbon steel, etc., applicable to the automotive and other industries), various plates, coils, and bars of stainless steel, galvanized steel, carbon steel, angle steel, etc.; alloy structural steel: such as gear steel, crankshaft steel, 20CrMnMo, Hastelloy corrosion-resistant alloys, high-temperature alloys, high-purity oxygen-free copper ingots, pure nickel products, high-performance nickel and nickel alloys, as well as the production and manufacturing of these materials.

• product specifications

  The material specifications of the Gear Shaft (precision forged)：1. Carbon steel: 45#, 40Cr; 2. Alloy steel: 20CrMnMo, 35CrMo, gear steel; 3. Stainless steel: 304, 316L; 4. Special materials: High-temperature alloy (customized as needed)

  The core performance of Gear Shaft (precision forged)：Axle diameter: 10 - 100 mm; Module: 1 - 5 mm; Number of teeth: 6 - 30 teeth; Precision grade: ISO 6 - 7; Tooth surface hardness: HRC 55 - 60; Axle body hardness: HRC 40 - 45; Tensile strength: ≥ 850 MPa; Wear-resistant and impact-resistant; Axial tolerance: ≤ 0.01 mm; Service life: ≥ 12,000 hours

  The applicable uses of Gear Shaft (precision forged)：1. Automotive industry: Automatic transmissions, drive shafts, drive axles; 2. Mechanical industry: Machine tools, reducers, motors; 3. Heavy industry: Mining machinery, metallurgical equipment, construction machinery; 4. Others: Automation equipment, robots, ship equipment

Gear products: SKU
